The technical section contains the necessary document(s) to identify and understand the Technical Specifications about the Solar Urja Lamp (SoUL). This would be helpful to understand the operation of SoUL.
1. Operation Manual of Solar Lamp
2. Defective Components Technical sheet
Technical Specifications of SoUL Lamp :-
|
|
|
||||
|
Lamp Components |

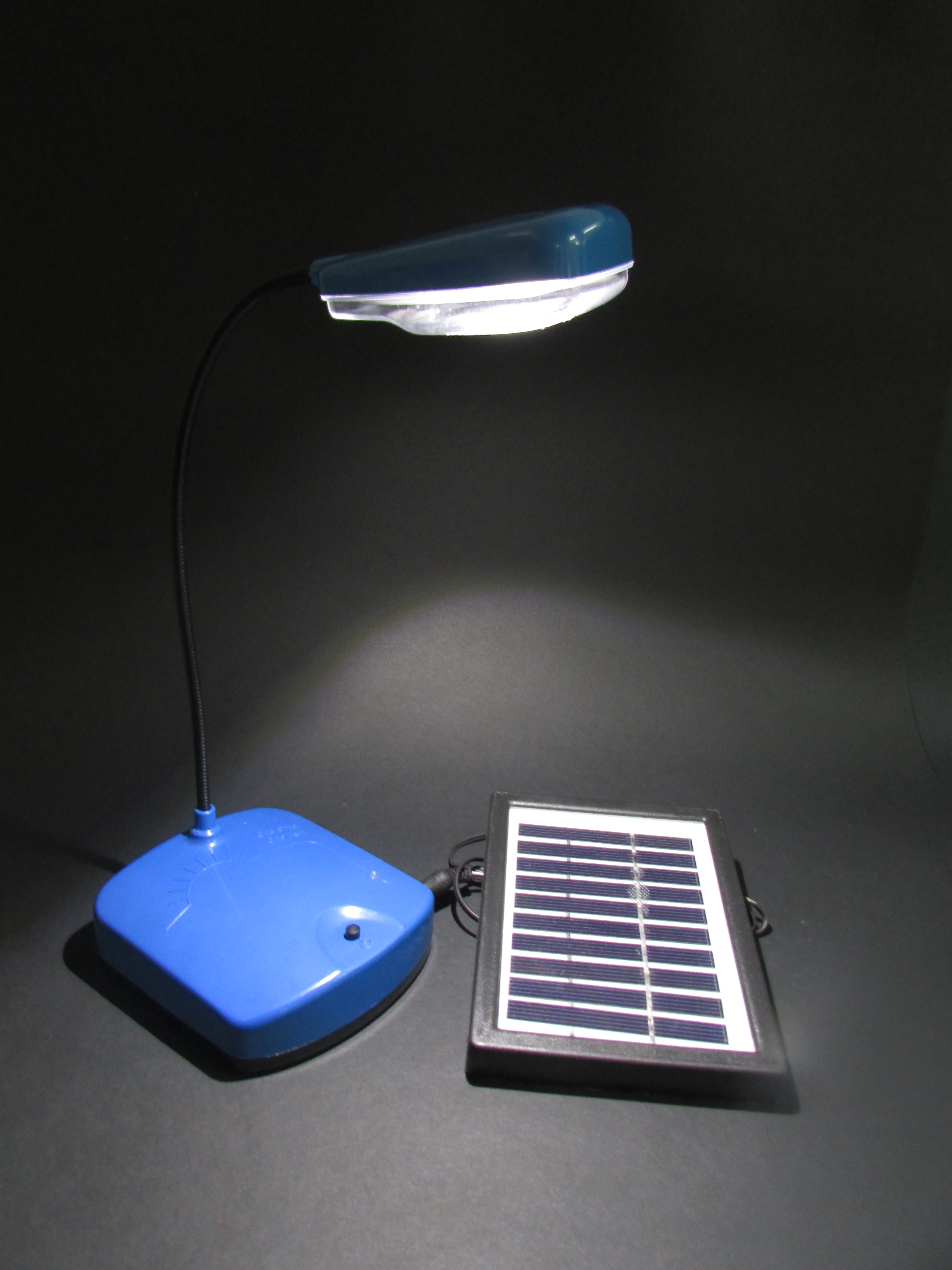

Thrive Solar |

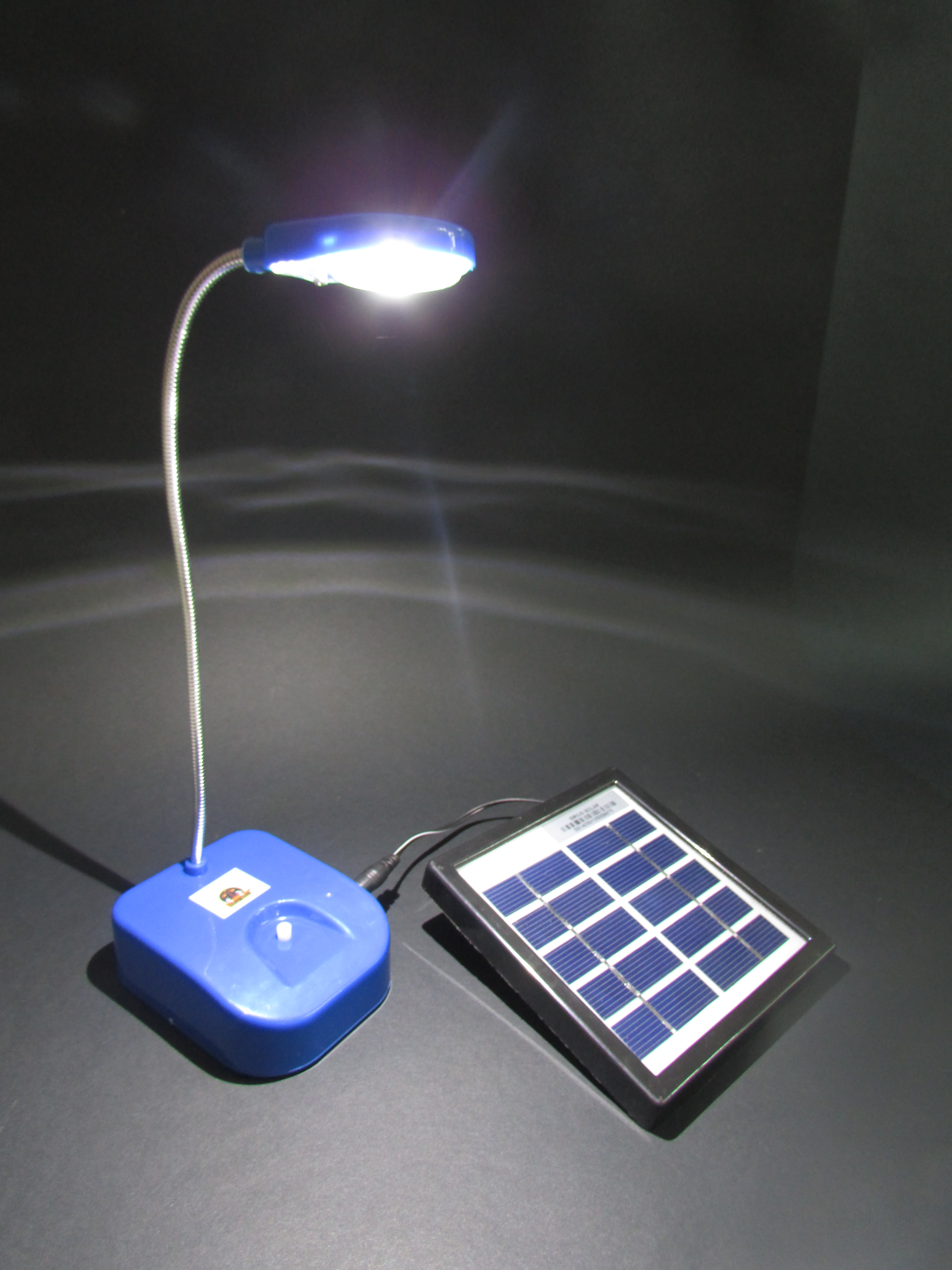

Sirius Solar |

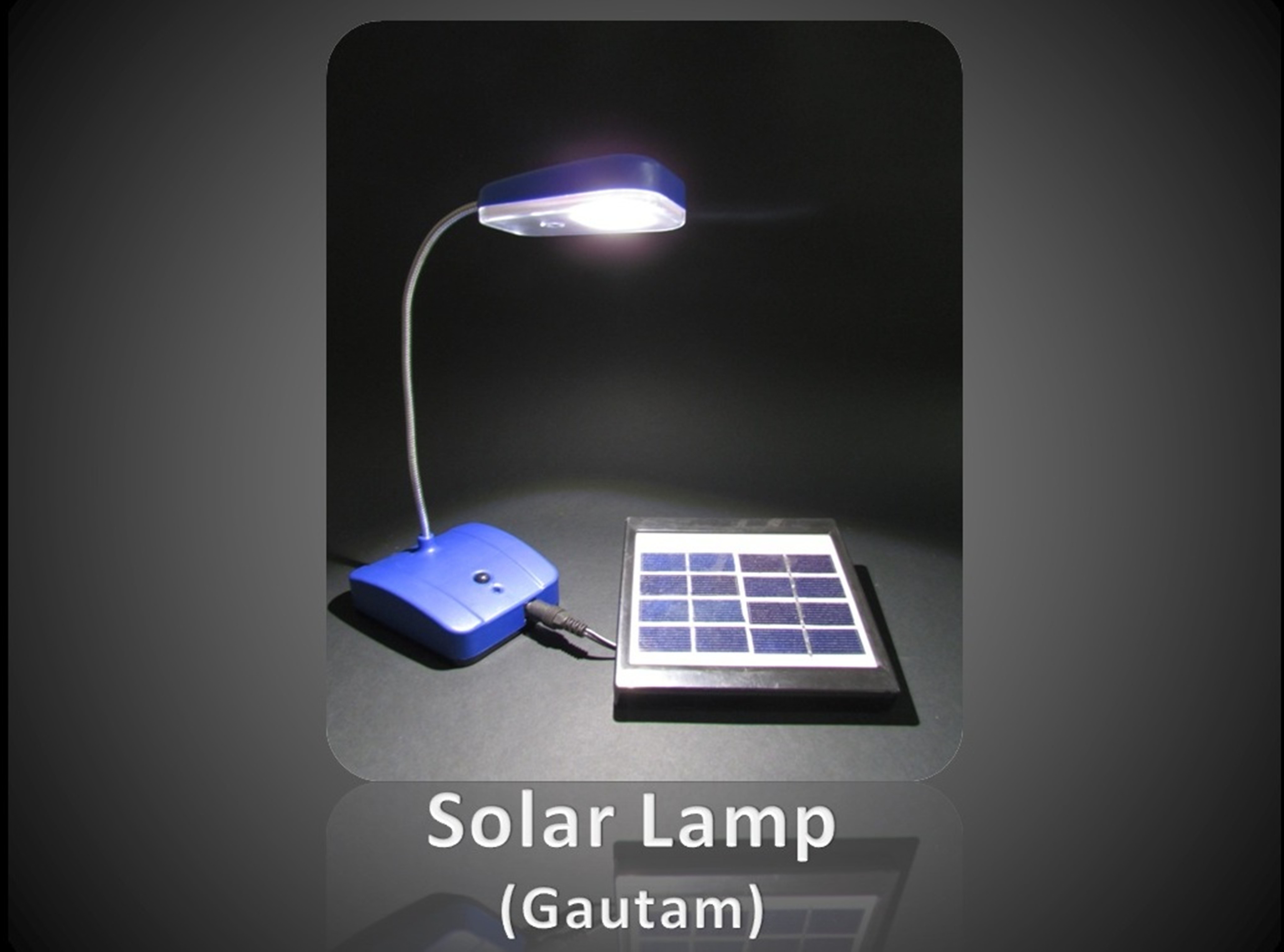

Gautam Solar |
TATA Solar |
|
|
Solar |
Rated Power |
1.0 Watt |
1.0 Watt |
1.0 Watt |
1.0 Watt |
|
Voltage |
5.5 V |
5.8 V |
6.0 V |
5.8 V |
|
|
Current |
220 mA |
230 mA |
230 mA |
230 mA |
|
|
Battery |
Voltage |
2.4V |
2.4V |
2.4V |
2.4V |
|
Capacity |
1200mAh |
1200mAh |
1200mAh |
1200mAh |
|
|
Type |
RechargeableNi-MH |
RechargeableNi-MH |
RechargeableNi-MH |
RechargeableNi-MH |
|
|
LED |
Power |
0.5 Watt |
0.5 Watt |
0.5 Watt |
0.5 Watt |
|
Make |
Nichia |
Nichia |
Nichia |
Nichia |
|
|
Technology |
W-LED |
W-LED |
W-LED |
W-LED |
|
|
PCB |
Efficiency |
80% Efficiency |
90% Efficiency |
78% Efficiency |
90% Efficiency |
|
Warranty |
1 year |
1 year |
1 year |
1 year |
|
|
Electronics Circuitry |
SMD components |
SMD components |
SMD components |
SMD components |
|
|
Modes of operation |
Half Mode |
8 Hours Backup |
8 Hours Backup |
8 Hours Backup |
8 Hours Backup |
|
Full Mode |
5 Hours Backup |
5 Hours Backup |
5 HoursBackup |
5 HoursBackup |
|
|
Weight |
Net weight |
130 gms |
130 gms |
130 gms |
130 gms |
|
Gross weight |
170 gms |
170 gms |
170 gms |
170 gm |
|
|
Packaging Box Dimensions |
120mmx110mmx140mm |
140mmx110mmx140mm |
130mmx130mmx140mm |
140mmx110mmx140mm |
|
